Portfolio
Portfolio
Clean Fuel Project THAI OIL
YEAR : 2018
Project : Clean Fuel Project
Owner : THAI OIL PUBLIC LIMITTED
Consultant : Amec Foster Wheeler Co.,Ltd
Main Contractor : IETL(Thailand) Co.,Ltd
Contract Amount : 41 Million
Period Time : Completed
SCOPE OF WORK :
1.Engineering work for FAR203 andSS202 Building
(Air Cooled Chiller System)
2. HVAC System material supplier, installation and Commissioning Work

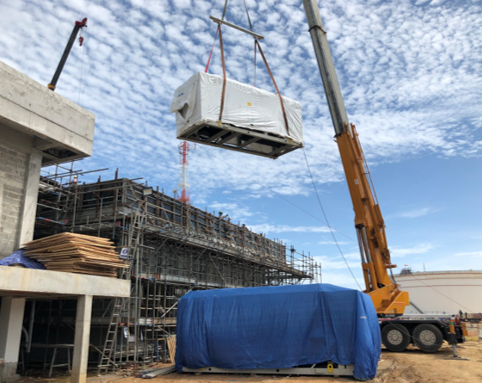

- Air Cooled Chiller Out Door Type (IP65)
Cooling Capacity : 713. Kw , with VSD Type.

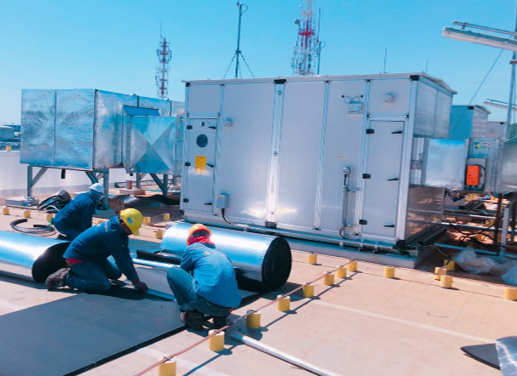

- Air Handling Unit (Chilled Water AHU)
- Cooling Capacity : 165 kW x 3 Set
- Cooling Capacity : 100 kW x 2 Set
PLC Touch Screen 12” Control with function alarm
- Supply Ventilation System (Motor IP 65 form USA)

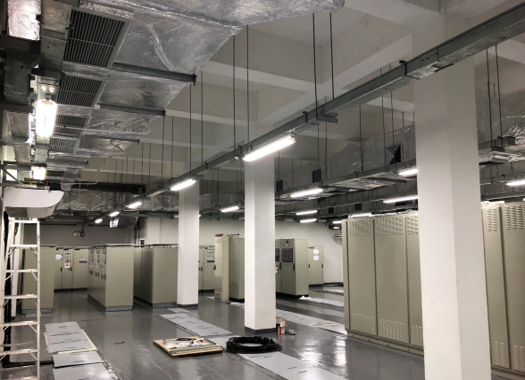

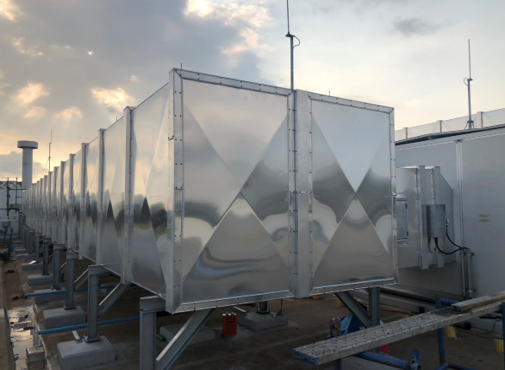

- Duct Work and Damper Fire Damper , (USA)
- Blast Damper and Barometric Damper (Special Product)
- Refrigerant Pipe with stainless jacket

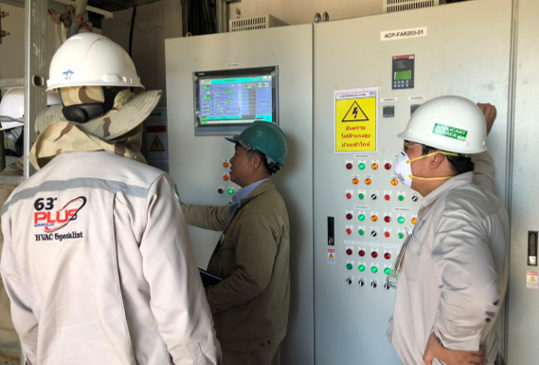

- Control Panel touch screen PLC (Littal form GERMAN )
- Instrument out door type (IP 65)
- Test And Commissioning
